Composite Partition MGO Board Making Machine With Single Shaft Mixer
1. Production Line
mgo board making machine can produce all kinds of magnesium oxide boards, they can be used for ceiling,
wall skirting, decorating of indoor wall and lining board for furniture. It can replace three-ply board, five-ply board,
flake board, MDF (Medium Density Fiberboard ) and Gypsum Board. It is really environment product and lower cost.
2. Technology features
There is not any requirement about high temperature and high pressure during production processing. The board
will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure.
This is a green environmental-protection project, because that there is no waste water, waste materials and waste
gas during its production processing. The finished board doesn't need high temperature drying, air-drying and watering,
and under the normal temperature, they will dry well indoor.
3. Equipment Model and Product Specification
According to different production, our equipment has 6 models for large-scale, middle-scale and small-scale.
Our all equipment can produce board with same quality and specification but different production.
The board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust
the thickness of board at will. The standard specification of the board is 1.22mX2.44m.
4.MgO Fireproof Board Contrast With Traditional Fireproof Board :
| | MGO BOARD | Traditional Fireproof Board |
| Density(kg/m3) | 1.0*103 | (approx)1.*1.03 |
| Mositure Absorption Rate(%) | 11 | About 2 times higher |
| Anti-bending strength (kgf/cm3) | 224 | Worse mgo board |
| Combustion-Resistance Class1 | Above 3mm | 6mm-12mm |
| Flexibility | Good | Worse than mgo board |
| Sound-Resistance | 44-45dB | (approx)45dB |
| Content of harmful substances | 100% don't have | Have harmful substances |
5. After-sale
After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation
and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel
for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service
for a long time, the equipment warranty period is one year.
6.Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.
James Yang
ADD: 17th, NanYan Road Economical and Technological
Development Zone,Shijiazhuang City,Hebei,China
Mobile Phone:+8615832254694
WeChat:15832254694
E-mail:lvjoe3@greensontech.com

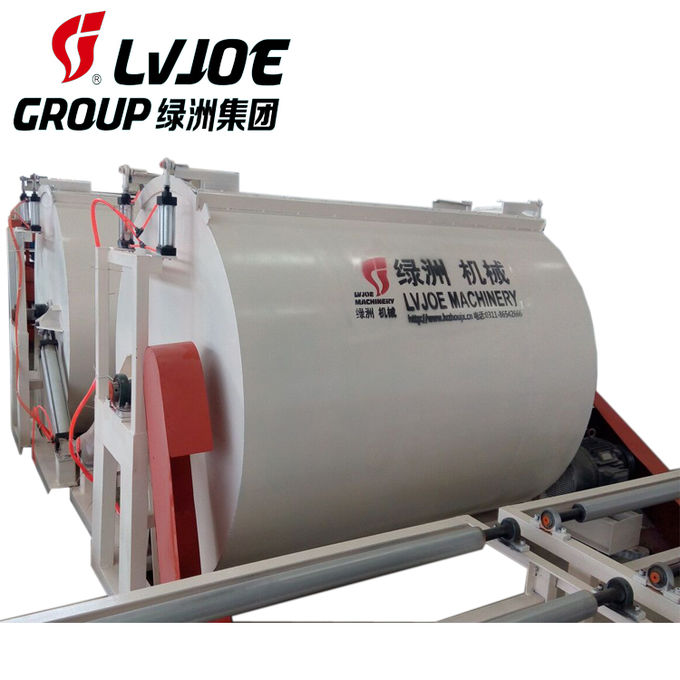

Mixer
The mixer machine is used to make the mgo board and other kinds of exterior wall thermal insulation board.
The machine adopts the fully enclosed design, the mixing time is shorten half time than the exposure mixer, the mixer speed is faster and the mixing materials more uniform. Automatically feeding the material greatly reduce the labour intensity.
Usage and Features
This mixer machine is usded for making the mao board and other kinds of exterior wall thermal insulation board.
| Motor power | 11kw |
| Reducer model | ZQ350 |
| Reduction ratio | 23.34 |
| Capacity(can be customized) | 0.9m3 |
| Feeding cylinder | 80*550 |
| Open cylinder | 30*300 |
